Pneumatic sound box

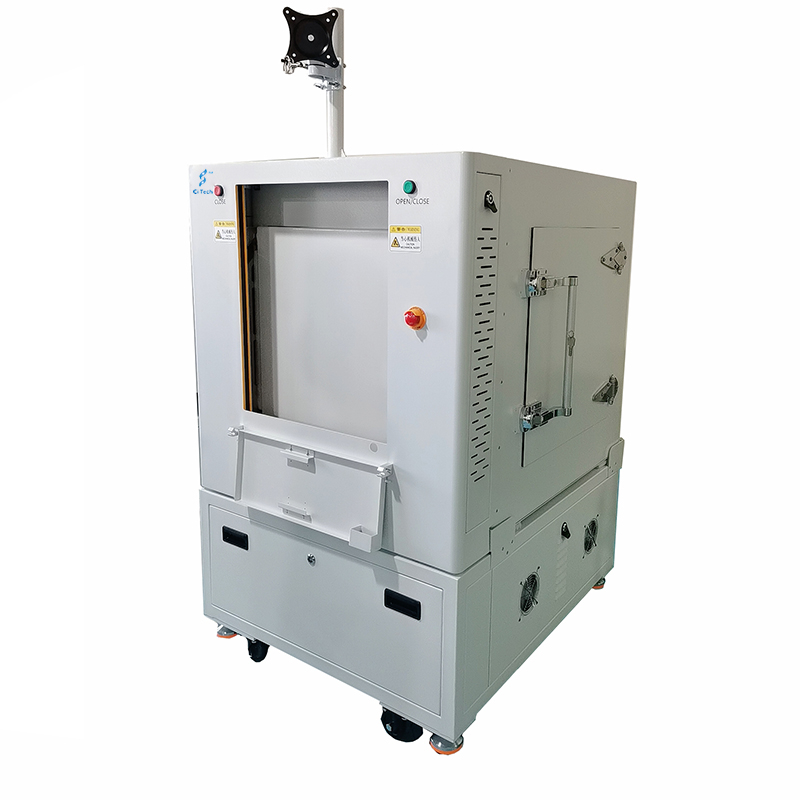

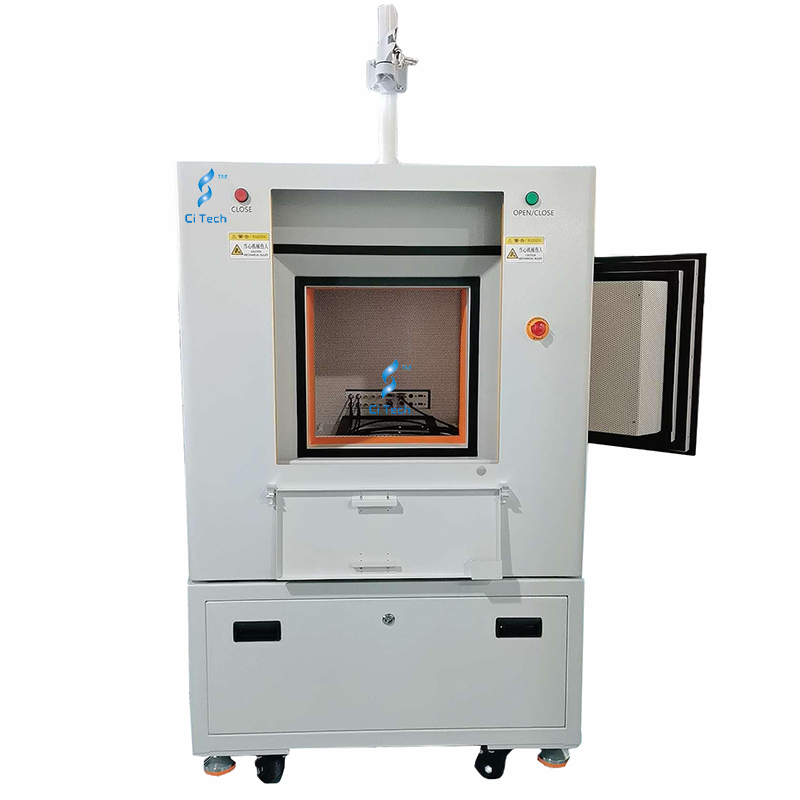

ST-SG1011soundproofing box/ acoustic chamber/sound box

ST-SG1011soundproofing box/ acoustic chamber/sound box

● Manual/automatic operation;

● Works for both manual operation line and automatic line;

● Equipped with independent operating door and maintenance door;

● Has the detection function of detection maintenance door switch state, only after the maintenance door is closed, can be tested, with the role of fool-proofing;

● Equipped with a separate Base, can be easy to move.

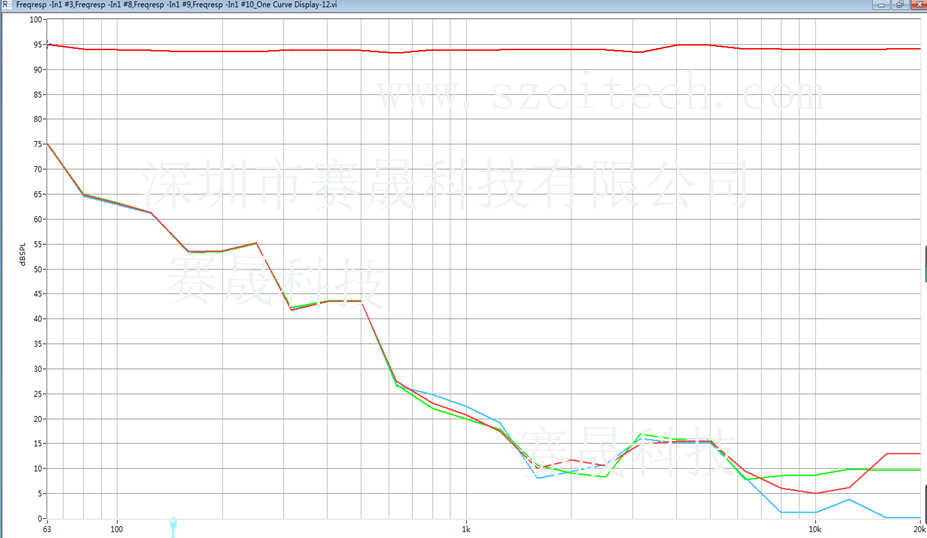

Soundproof solution：

? ≥20 dB, 80Hz to 100Hz；

? ≥25dB，100 to 200Hz；

? ≥35db，200 to 400Hz；

? ≥45db，400 to 1500Hz；

? ≥50dB, >1500 Hz

order

Introduction：

szcitech can specially provide a steady testing environment with noise floor low as 30dBA for performance testing of acoustic products, such as speaker, receiver and mic. Sound isolation can reach more than 40dB(300Hz~20kHz), Also, we can customize sound-isolated box with special size and fixture, and provide integrated testing system solutions.

Application

The main function and scope of application

Providing a sound insulation testing environment for products


Operation Mode	Pneumatic
inner dimension	(L)500(W)500(H)500 mm
Material	metal plate
Surface Color	Grey white
Soundproof solution	? ≥20 dB, 80Hz to 100Hz； ? ≥25dB，100 to 200Hz； ? ≥35db，200 to 400Hz； ? ≥45db，400 to 1500Hz； ? ≥50dB, >1500 Hz
I/O(connector) weight	BNC6,USB3.02,DC2,XLR2 approx 465kg
