welcome~Shenzhen CITECH Technology Co., Ltd.
language selection： 中文版 ∷  englisht

Pneumatic sound box

ST-SG001C soundproofing box/ acoustic chamber/sound box/anechoic box

outer noise 80dBA, inside noise≤ 30dBA

CiTech can specially provide a steady testing environment with noise floor low as 30dBA for performance testing of acoustic products, such as speaker, receiver and mic. Sound isolation can reach more than 40dB(300Hz~20kHz), Also, we can customize sound-isolated box with special size and fixture, and provide integrated testing system solutions.


order

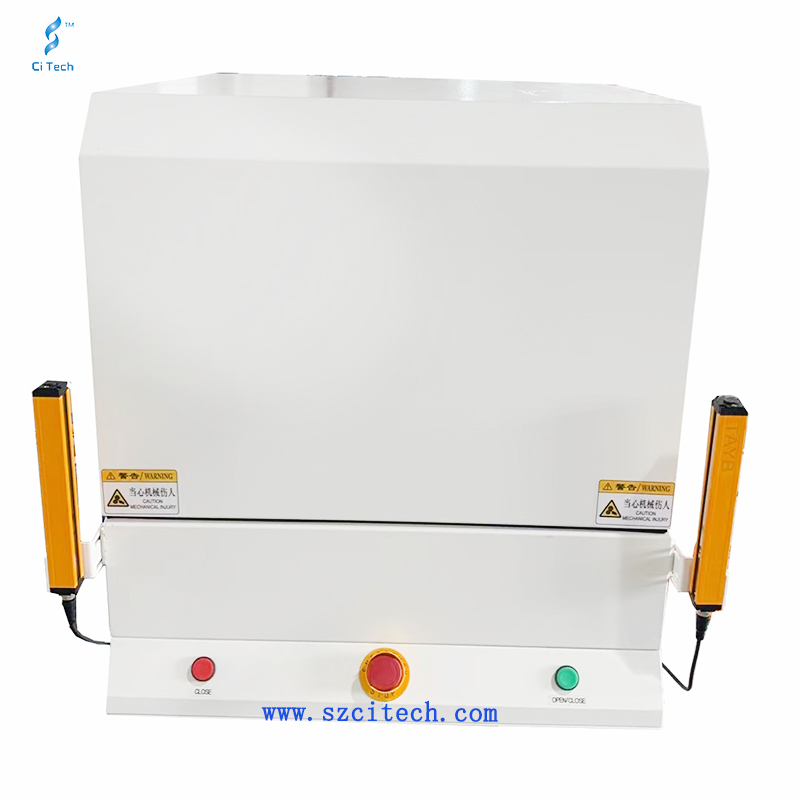

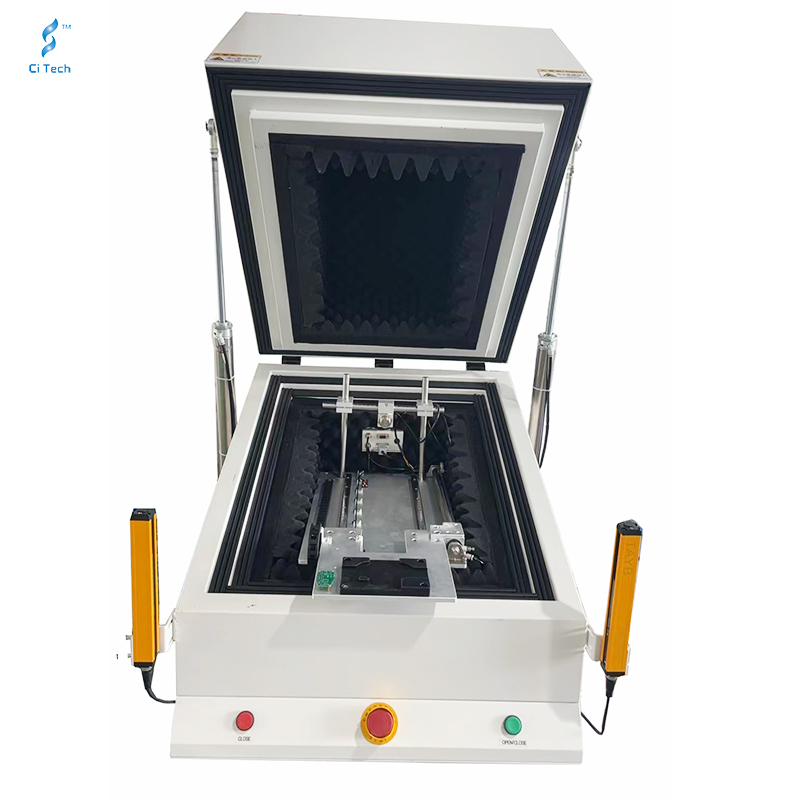

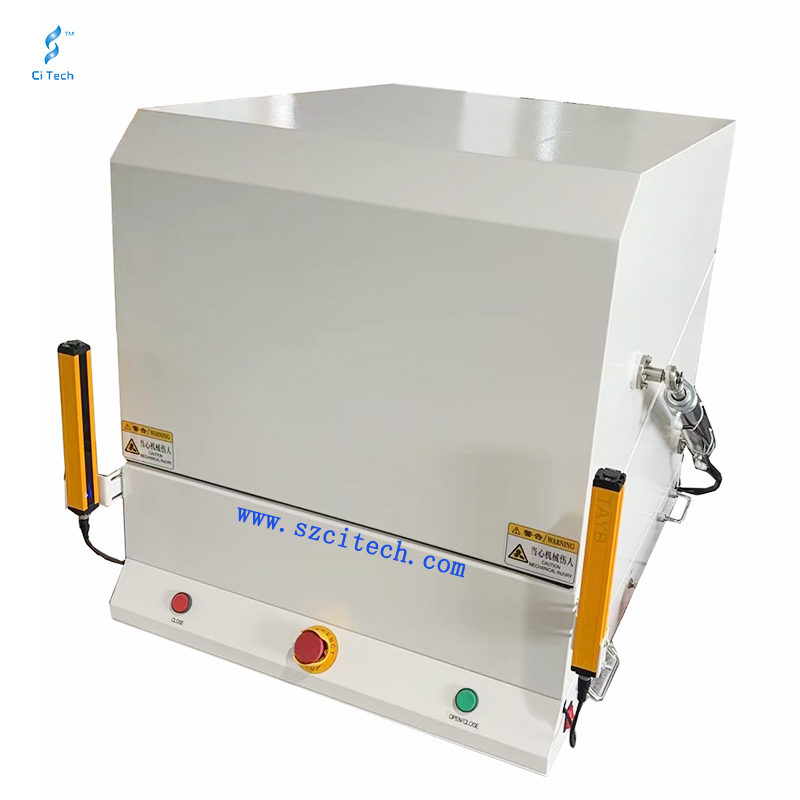

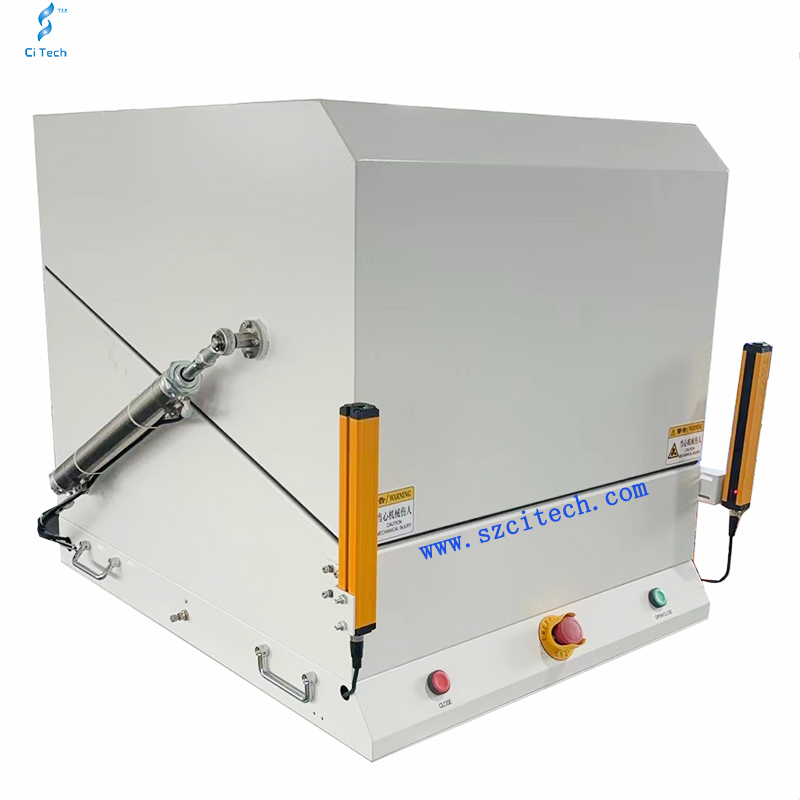

ST-SG001C soundproof box/ acoustic chamber/sound box

Application

The main function and scope of application

Providing a sound insulation testing environment for products



Operation Mode

Pneumatic

Inner dimension：

outer dimension：

 (D)430*(W)310*(H)280MM

（D)818*(W)660*(H)713mm

Material

metal   plate

 Surface Color

I/O:

 Grey   white

DB9*1,DC*1

 Soundproof solution

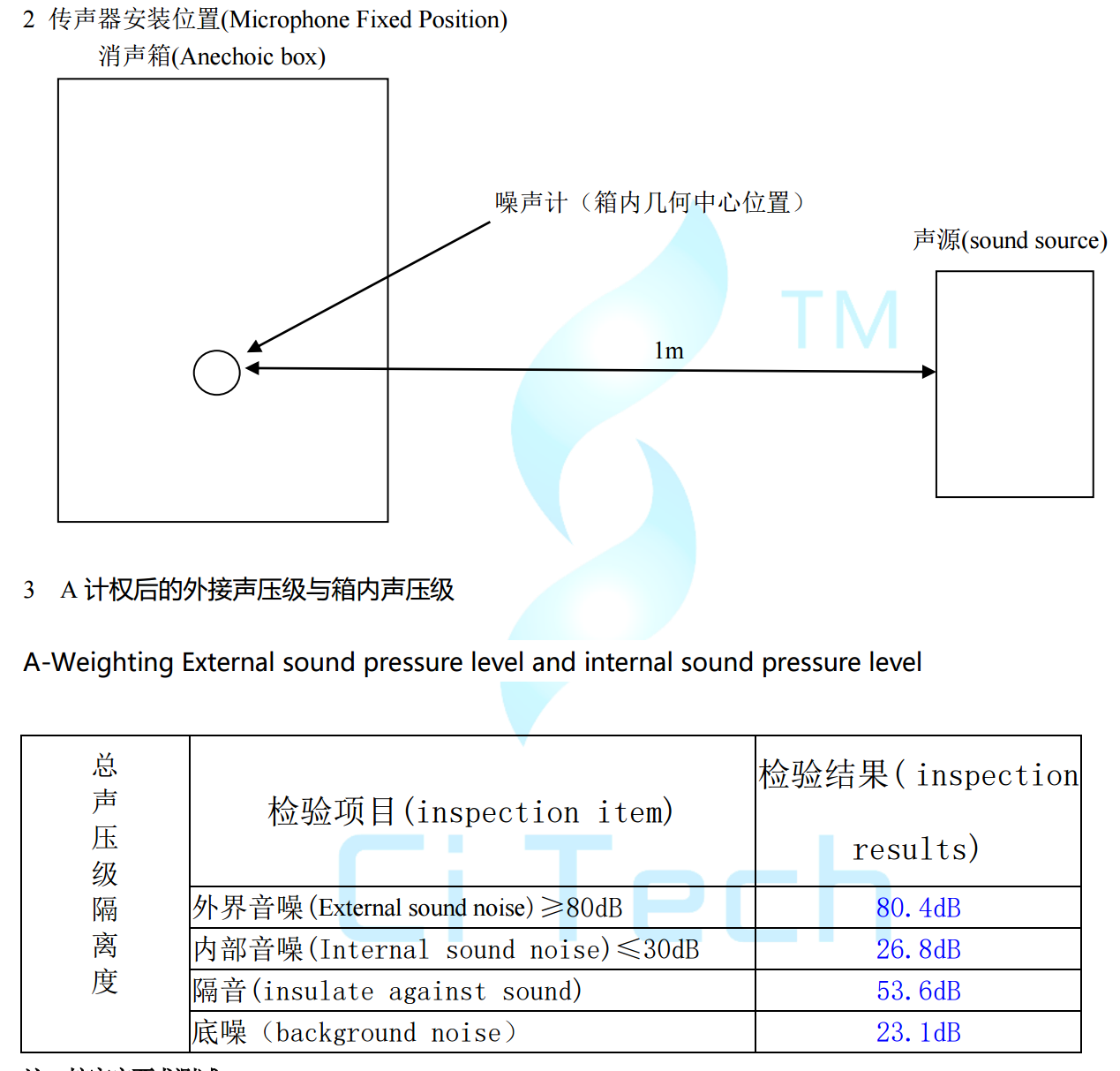

1、 Soundproof Volume Outer environment noise pressure level:

       A weighted sound pressure level:outer noise 80dBA, inside noise≤ 30dBA


We can customize acoustic chamber with different isolation degrees according to different requirements, and the background noise is as low as 20-30db
