Pneumatic sound box

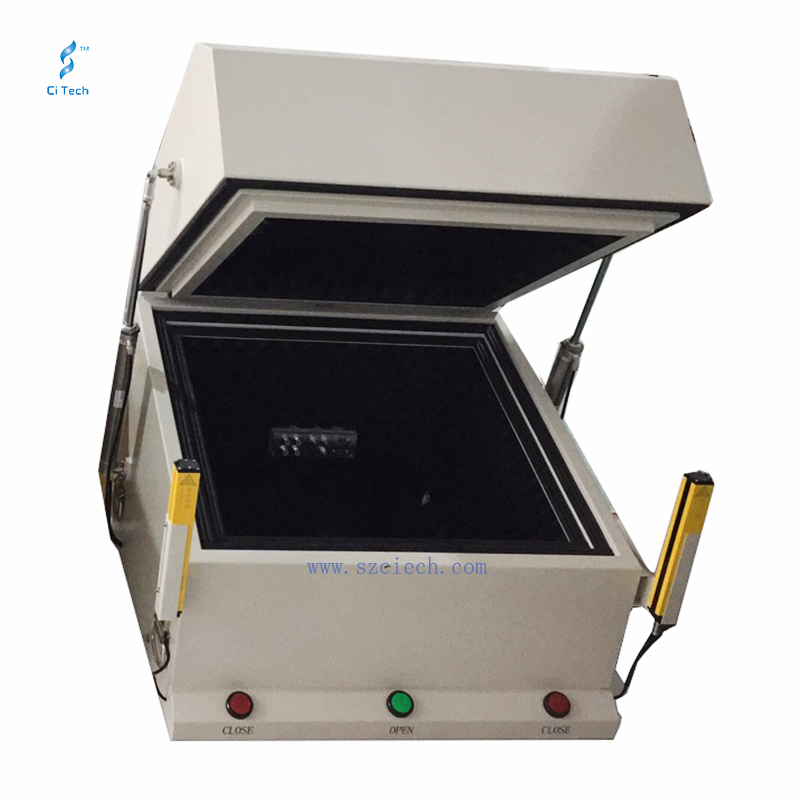

ST-SG5060B soundproofing box/ acoustic chamber

isolation:100-300hz>25dB,300-700hz>35dB,700-20khz>40dB

order

introduction:

szcitech can specially provide a steady testing environment with noise floor low as 30dBA for performance testing of acoustic products, such as speaker, receiver and mic. Sound isolation can reach more than 40dB(300Hz~20kHz), Also, we can customize sound-isolated box with special size and fixture, and provide integrated testing system solutions.


Application

The main function and scope of application

Providing a sound insulation testing environment for products



Operation Mode

Pneumatic

outer dimension

 (D)660*(W)610*(H)610mm

inner dimension

(D)380*(W)370*(H)335mm

Material

metal   plate

Surface Color

Grey   white

Soundproof solution

100-300hz>25dB,300-500hz>35dB,500-20khz>40dB

I/O(connector)

AC220*1 ,BNC*2, USB2.0*4

Weight

approx.71kg
