Pneumatic sound box

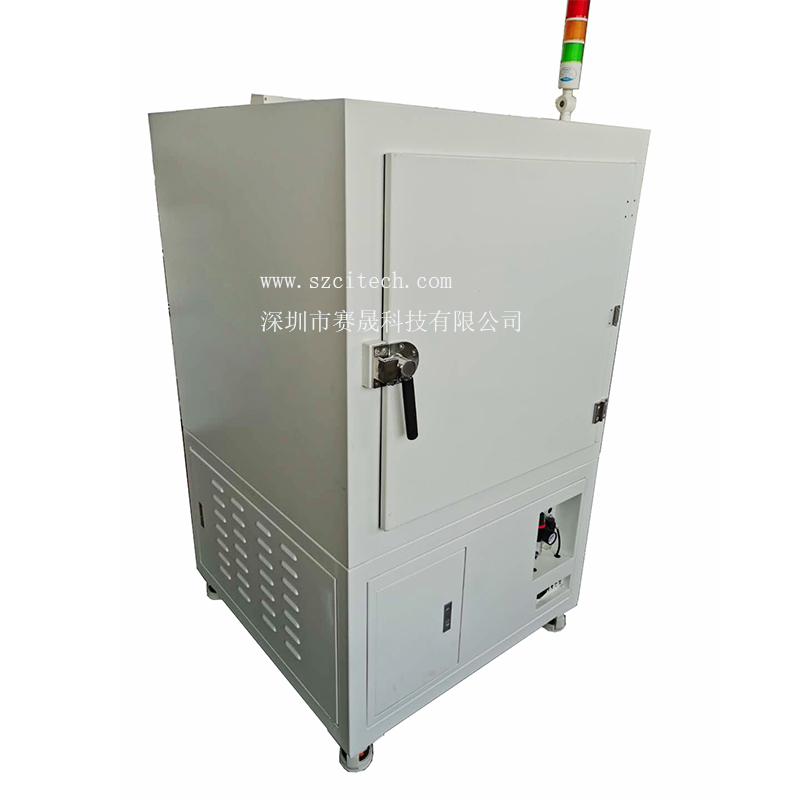

ST-SG006C soundproofing box/ acoustic chamber

ST-SG006C soundproofing box/ acoustic chamber/sound box

ST-SG006C soundproofing box/ acoustic chamber/sound box

ST-SG006C soundproofing box/ acoustic chamber

Soundproof solution: Outer environment noise 70dB; inside noise :35dB(A)

It can meet the requirements of most 3C digital products, automotive electronics and other audio test environment

order

isolation boxes for audio testing（soundproof box、 acoustic chamber）

introduction：

szcitech can specially provide a steady testing environment with noise floor low as 30dBA for performance testing of acoustic products, such as speaker, receiver and mic. Sound isolation can reach more than 40dB(300Hz~20kHz), Also, we can customize sound-isolated box with special size and fixture, and provide integrated testing system solutions.

Application

The main function and scope of application

Providing a sound insulation testing environment for products

Operation Mode	Pneumatic
Inner dimension	(D)600(W)600(H)600mm
Material	metal plate
Surface Color	Grey white

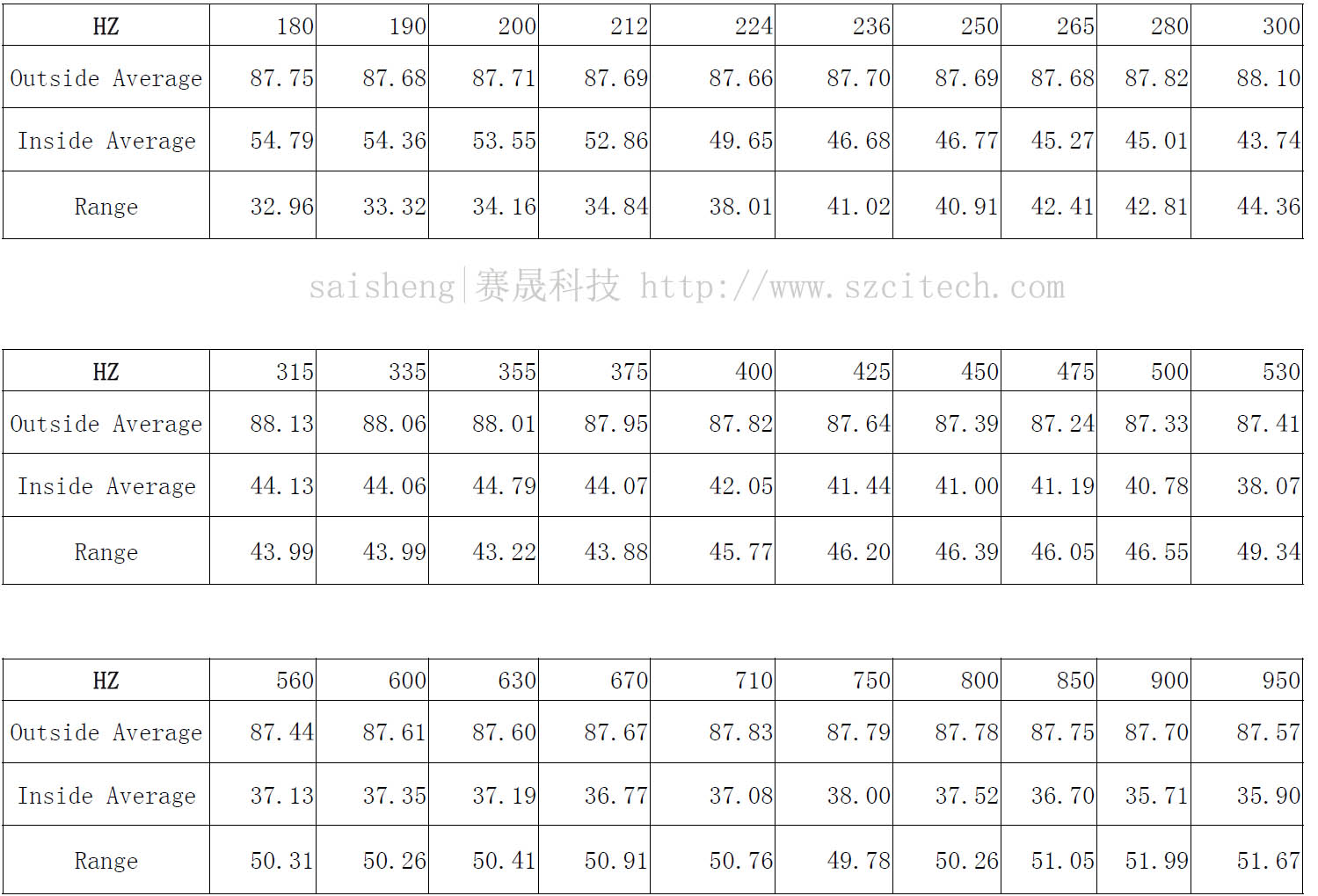

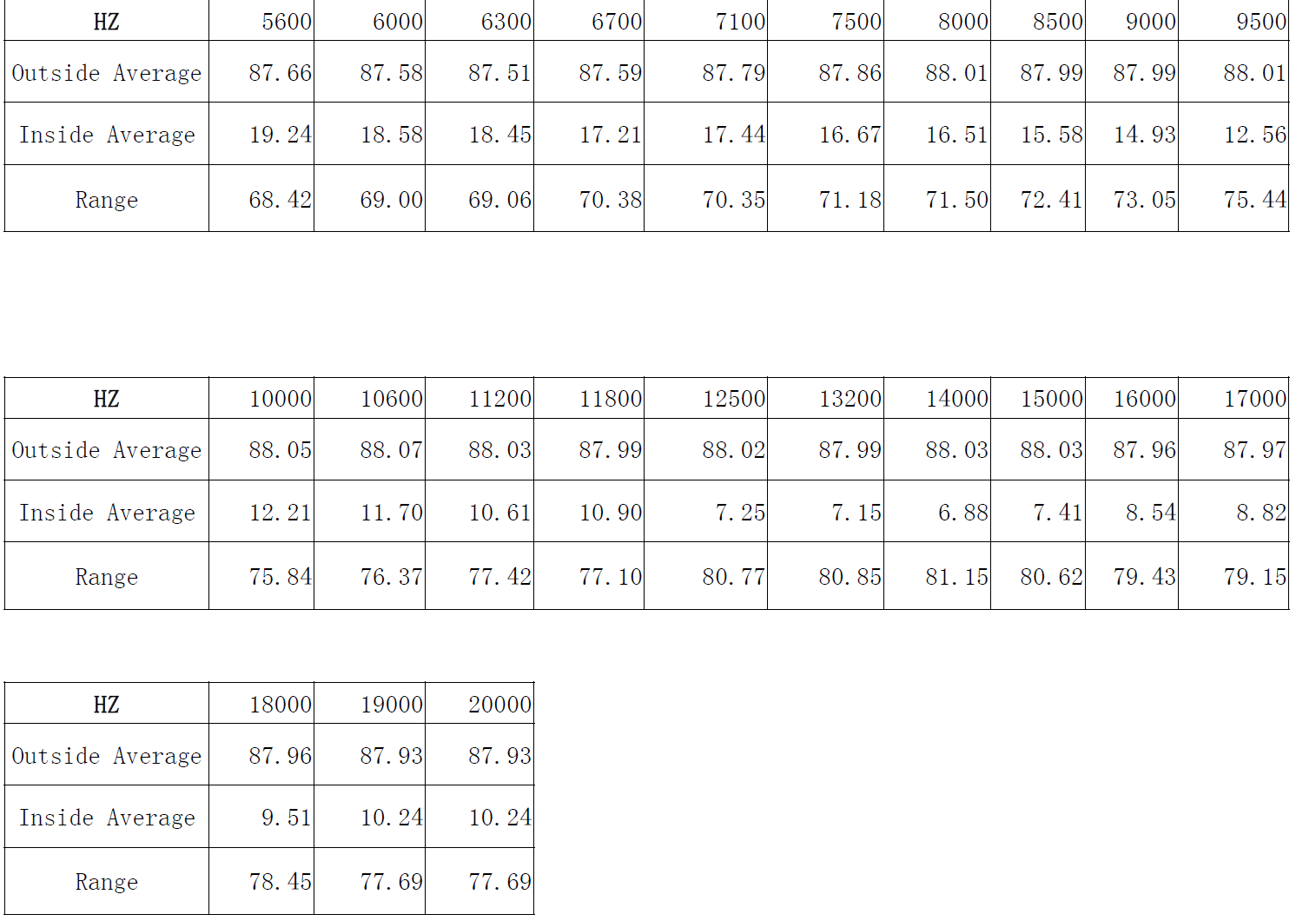

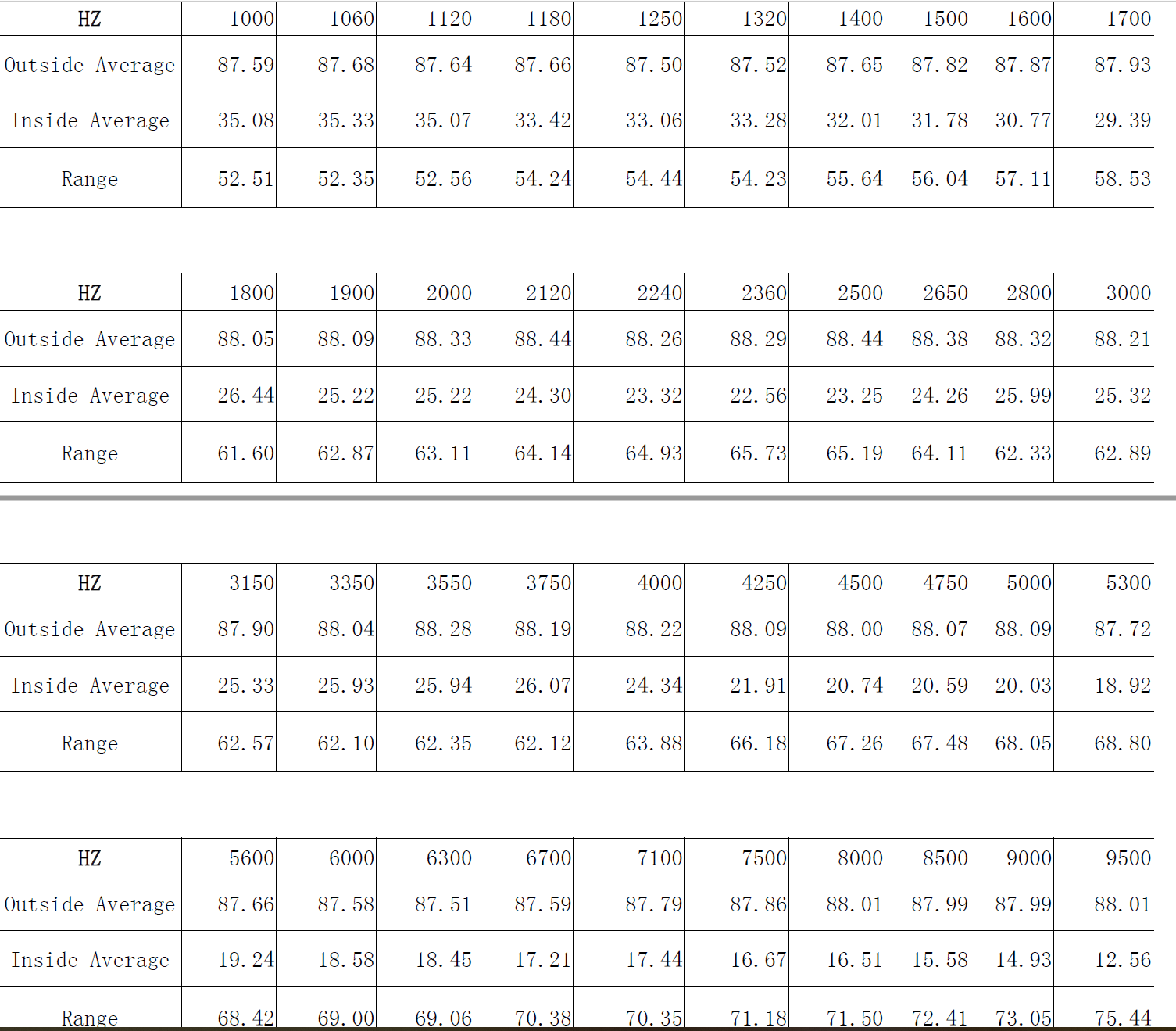

Soundproof solution	150-300hz>25dB,300-500hz>35dB,500-20khz>40dB
I/O(connector)	4 BNC, 2 USB, 2 MINI DIN 4 PIN ,2 DB25 , 4 XLR connectors
