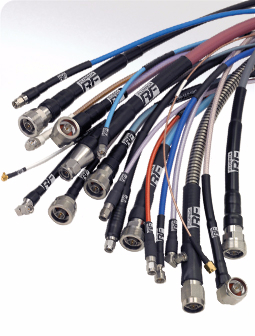

Lab-Flex? 200 is ideal for low loss replacement of solid dielectric .195" diameter cables. With an 80% velocity tape-wrapped dielectric, Lab-Flex? 200 cable has 40% lower loss than solid dielectrics of the same size, (such as RG142).
在線訂購The Lab Flex 200UV cable incorporates a Carbon/Teflon layer between the outerconductor shields that yields a higher number of flexure cycles and low VSWR performance. This layer minimizes frictional heat buildup between the outerconductor shields when the cable is flexed. This design significantly enhances the overall flexure life of the cable assembly. This Carbon/Teflon layer also acts as an reflection absorber that improves VSWR performance and makes this cable assembly an ideal candidate for test and measurement applications. This cable is particularly well suited for testing low noise, active components as the Carbon/Teflon layer also contributes to low noise cable assembly performance.
Mode Free Operation to 32GHz
80% Velocity Low Loss Dielectric
Superior Shielding Effectiveness
Available with Protective Coverings of:
Armor
Weatherized
Armor/Weatherized
Stainless Steel Connectors
Phase Matched Sets Available (standard tolerance is ± 2.8 degree per GHz)
Test Cables
Test Head Cables
Switch Interconnects
Antenna Systems
Radar Systems

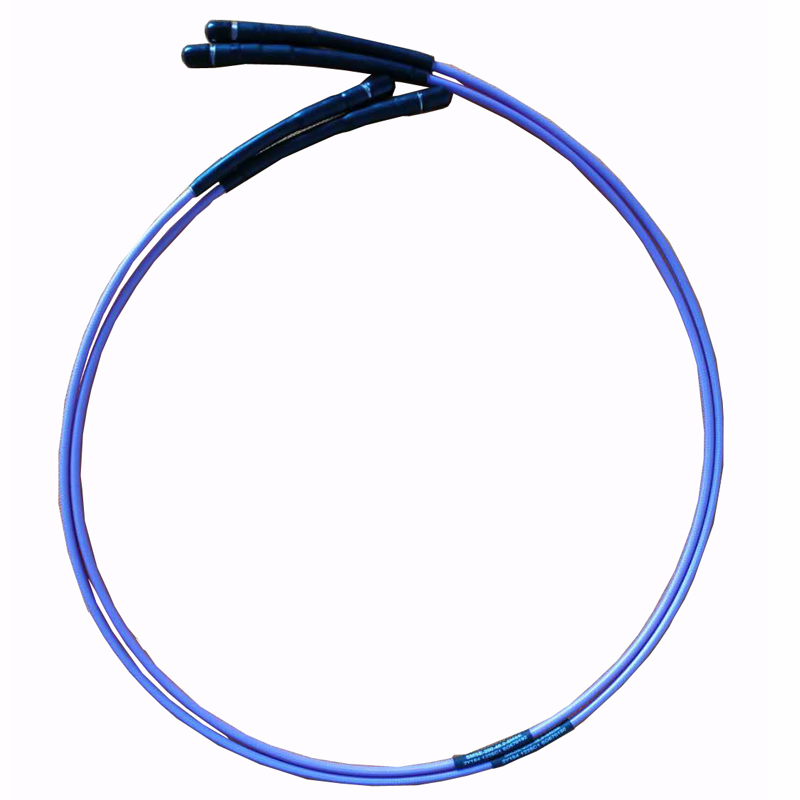

1、SMSE-200-48.0-NMRE(N型彎頭） SME-N 彎頭 長1.2m 18G
2、SMSE-200-48.0-SMSE SME-SME,長1.2m 18G
3、SMSE-200-30.0-NMRE(N彎頭） SME-N彎頭 長0.76m 18G
