welcome~Shenzhen CITECH Technology Co., Ltd.
language selection： 中文版 ∷  englisht

Pneumatic shielding box

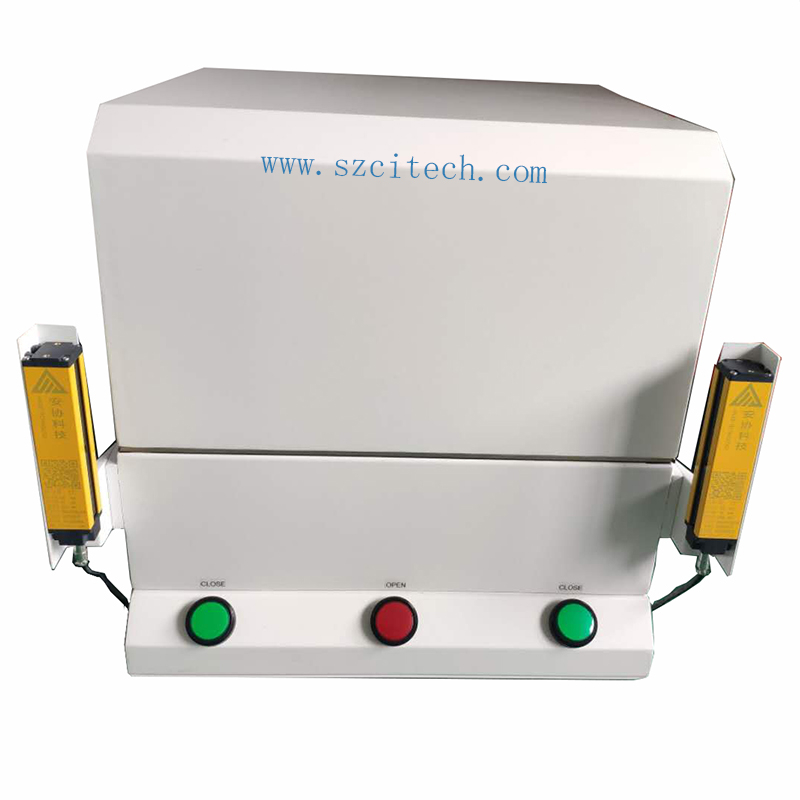

ST-SP003 Pneumatic chamber/RF shielding box/RF shielded box

Reliable high RF shielding up to 12GHz

Pneumatic operation

Easily customizable to meet various test needs

EMI filters on all Data and Power lines

Dual pressure control and Lid down sensor for safety


order

Application



ST-RF003 RF Shielded Box provides RF isolation and signal connections necessary for Mobile testing. With the RF coupling accessory and filtered control ports, it makes an ideal solution for testing mobiles and small RF devices on the test benches of R&D, service QC and manufacturing Comprehensive wireless communications testing solutions , In the service of high-end technology, such as DAB/DMB、GSM、GPS、LTE、Wi-Fi、Wi-Max、 CDMA、CDMA2000、WCDMA、TD-SCDMA、3G/4G/5G mobile、WLAN、Bluetooth、PDA、Reflex、Wi-Fi Phone, UWB, ZigBee, RFID, TD-SCDMA, etc.


u  Reliable high RF shielding up to 12GHz

u  Pneumatic operation

u  Easily customize to meet various test needs

u  EMI filters on all Data and Power lines

u Dual pressure control and Lid down sensor for safety

Specification

Inner Dimension

(D)450 *(W)430*(H)400 mm

Outer Dimension

(D)510 *(W)510 *(H)510mm

Shielding Isolation

800Mhz-8.5G≥70dB

Shielding Material

Microwave Absorber

Material

metal plate

Surface Color

Grey white ( According to the customer request   custom color)

I/O Connectors

SMA-SMA*10,   ,USB*1, RJ45*8，∮6 air inlet *2，AC220 *1（Can be customized according to needs）
