High performance shielding box

ST-T001 hight performance RF shielded box/chamber

u  Wide Variety Of I/O Options!

u  Great Isolation Up To 18GHZ!

u  Models To Fit Any Application!

u  Manual operation !

Perfect for 802.11a, b, g, Wireless LAN, Wi-Fi, Wi-Max, Cellular, Paging, PCS, GPS, GSM 3G, RFID, Zigbee, Bluetooth?, Blade Servers, Cards, WAP’s, Production Testing, Quality Assurance and other Wireless Devices Testing or just as a RF Shielded Test Enclosure.


order

Specification

Outer Dimension：

(L)700x (W)500 x (H)600mm

Inner Dimension：

(L)550x (W)400 x (H)500mm

Material:

metal plate

Surface Color:

white  (   According to the customer request custom color)

Weight

Apron 50Kg

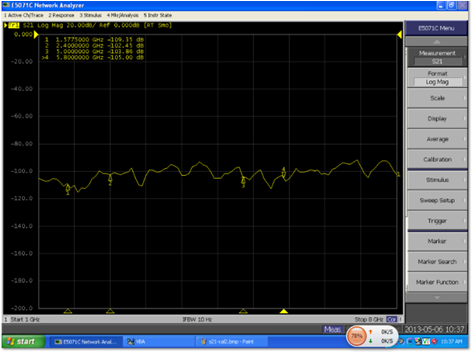

Shielding   Isolation

800MHz ~6GHz >90dB;6GHz~12GHz >80dB;12GHz~18GHz   >70dB;

I/O Connectors:

DB9*1,DC2.0*2,USB*2,RJ45*2,SMA*6


測試的技術(shù)依據(jù)(Reference documents for the calibration)：

GB/T 12190-2006 電磁屏蔽室屏蔽效能的測量方法 Method for measuring the shielding effectiveness of  Electromagnetic shielding enclosures
