Automatic shielding box

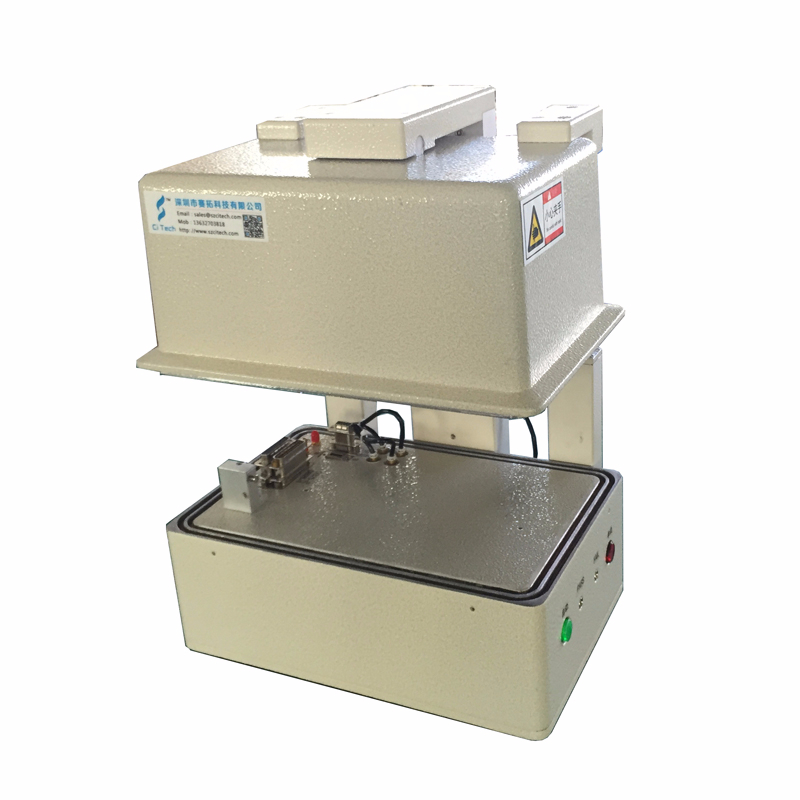

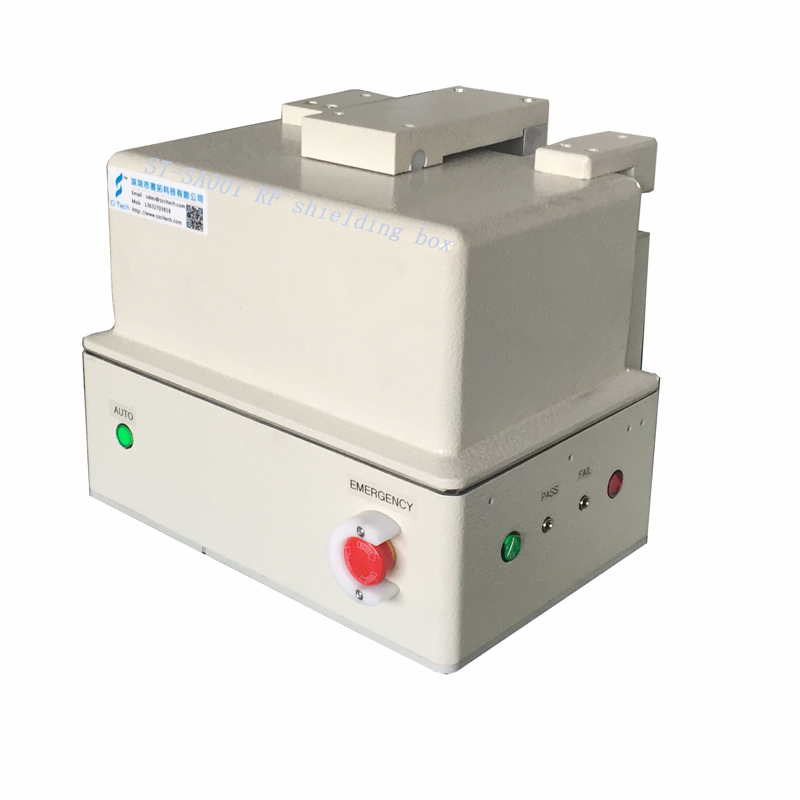

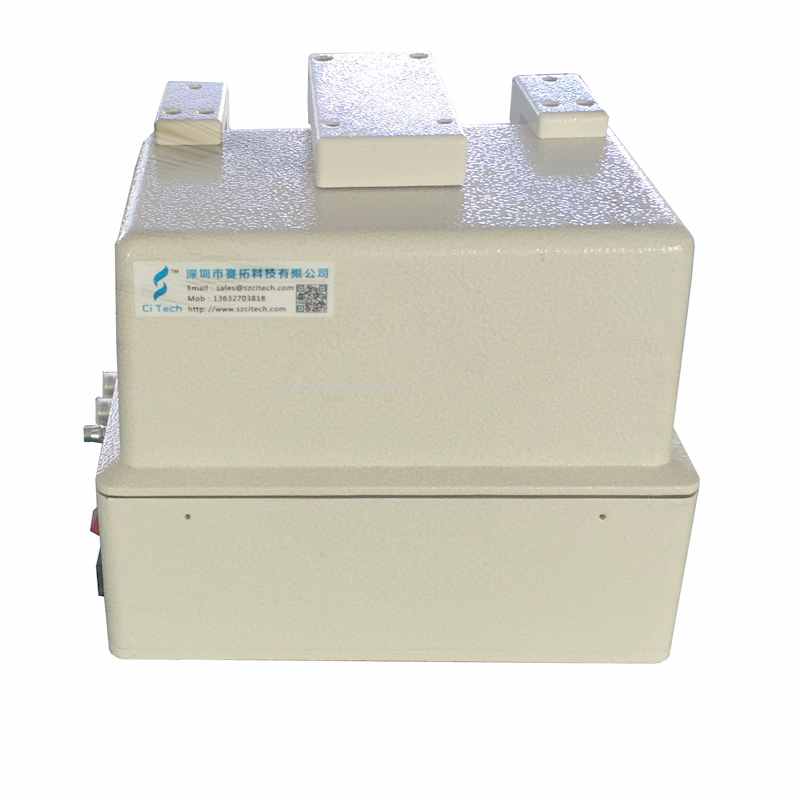

ST-SA001 RF SHIELDING BOX

Comprehensive wireless communications testing solutions , In the service of high-end technology, such as DAB/DMB、GSM、GPSLTE、Wi-FiWi-Max、 CDMACDMA2000、WCDMA、TD-SCDMA、3G/4G/5G mobile、WLAN、Bluetooth、PDAReflex、Wi-Fi Phone, UWB, Zigbee, RFID, TD-SCDMA, etc.

order



Application

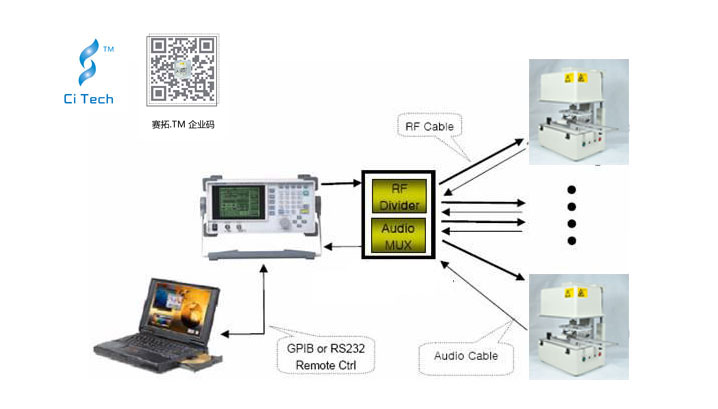

ST-SA001 RF Shielding Box provides RF isolation and signal connections necessary for mobile testing. With the RF coupling accessory and filtered control ports, it makes an ideal solution for testing mobiles and small RF devices on the test benches of R&D , service QC and manufacturing

Comprehensive wireless communications testing solutions , In the service of high-end technology, such as DAB/DMB、GSM、GPS、LTEWi-Fi、Wi-Max CDMA、CDMA2000WCDMA、TD-SCDMA、3G/4G/5G mobile、WLAN、Bluetooth、PDA、ReflexWi-Fi Phone, UWB, Zigbee, RFID, TD-SCDMA, etc.



Features

ü   Reliable high RF shielding up to 6GHz

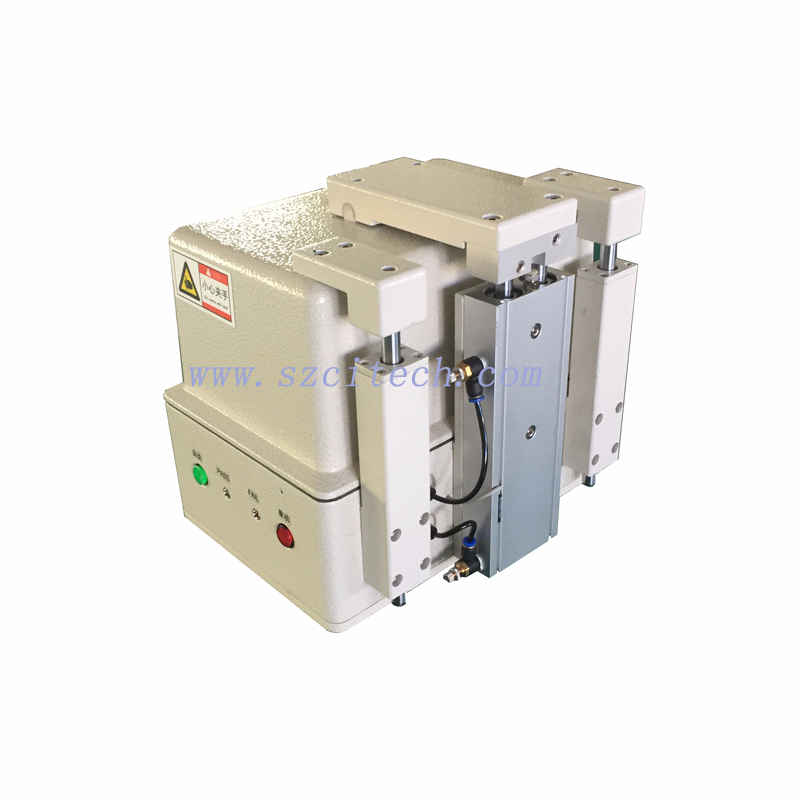

ü   Pneumatic control

ü   Easily customizable to meet various test needs

ü   Shock absorbers on lid

Specification

Inner Dimension

L280 xW170 xH135mm

Outer Dimension

L340 xW255 xH295mm

Shielding Isolation

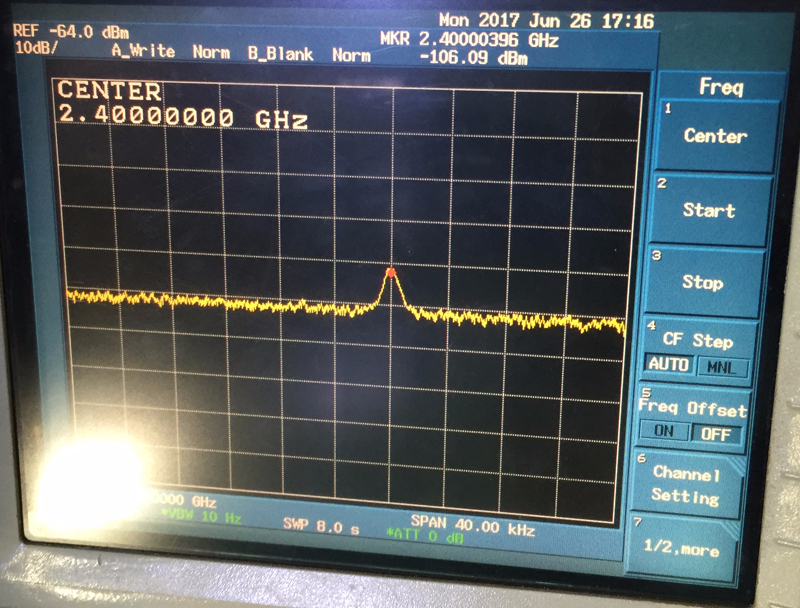

800MHz~6GHz>70dB

Shielding Material

Microwave Absorber

Material

Aluminum

Weight

approx.20kg

Surface Color

Grey white ( According to the customer request custom color)

I/O Connectors

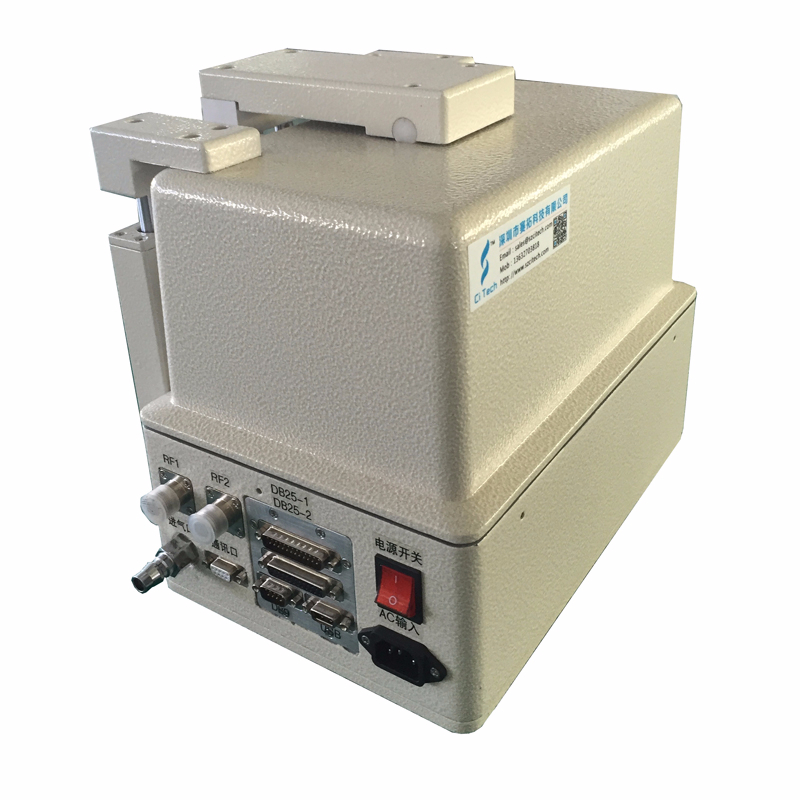

N-SMA*2,RS232*1,DB25*1,USB*1

Optional accessories



1、N-N RF cable 1m

2、fixturescustomized products


We realize that the connectors, options and actual test procedures of one customer are entirely different from that of another.  In fact over the past 10 years we have never had an identical connector and option configuration between customers!  We made it easy with our precision machined I/O output panels to get standard delivery of your "custom configured" enclosure!  It goes beyond connectors and options.  If you need a special configuration, a different size or door configuration, talk to us!  The entire line of STE enclosures has evolved from just that, the needs of people like you!
