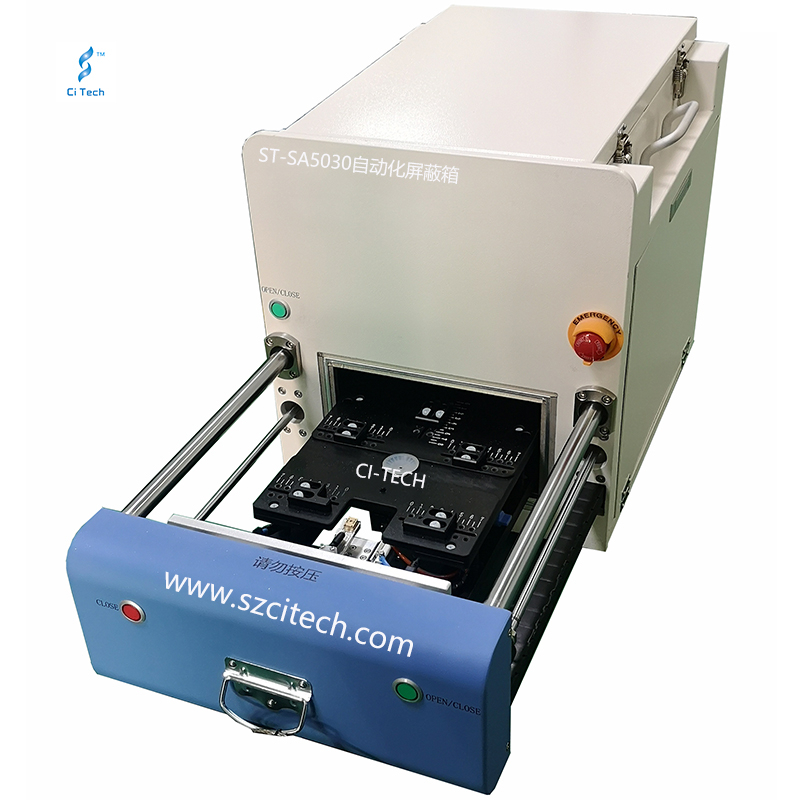

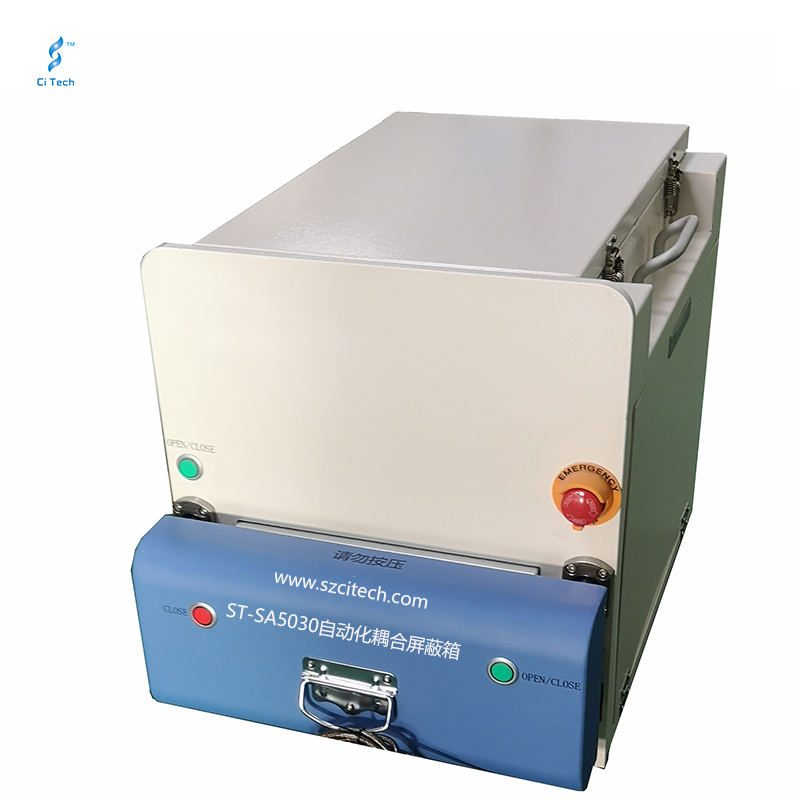

ST-SA5030 Automatic coupling shield box/mobile phone coupling shield box

ST-SA5030 Automatic coupling shield box/mobile phone coupling shield box

It is applied to the automated testing of terminal communication products such as mobile phones, gateways, intelligent hardware and intelligent modules.

· Support near-field testing and far-field testing of antennas of communication products, and realize antenna consistency testing and antenna performance testing;

· Support antenna coupling test of 2G, 3G, 4G, WIFI, BT, GPS and other standards;

· Adopt standardized shielding box design with shielding effect greater than 80dB to provide a stable testing environment for terminal communication products;

· Adopt universal automated fixture design to support multi-specification communication product testing.

Mobile phone coupling shield box (can be two antennas and three antennas) Universal fixture size (L)180mm*(W)150mm (maximum 8 inch products)

order

Comprehensive wireless communications testing solutions , In the service of high-end technology, such as DAB/DMB、GSM、GPS、LTE、Wi-Fi、Wi-Max、 CDMA、CDMA2000、WCDMA、TD-SCDMA、3G/4G/5G mobile、WLAN、Bluetooth、PDA、Reflex、Wi-Fi Phone, UWB, Zigbee, RFID, TD-SCDMA, etc.

技術參數(shù)：

工作尺寸(Inner Working)	(L)370mm x(W) 275mmx(H) 365mm
外形尺寸(outer Dimension)	(L)540x(W)380x(H) 415mm
屏蔽效果（Shielding Isolation）	800MHZ-3GHZ>80DB,3GHZ-6GHZ>70DB
屏蔽材料Shielding Material	吸波泡棉Microwave Absorber
箱體材料（Material）	鋁板+鈑金焊接
萬能夾具尺寸	*(L)180mm(W)150mm（最大滿足**8寸產(chǎn)品）
表面顏色Surface Color	白色+藍色 white&blue ( 可以根據(jù)客戶要求定制)

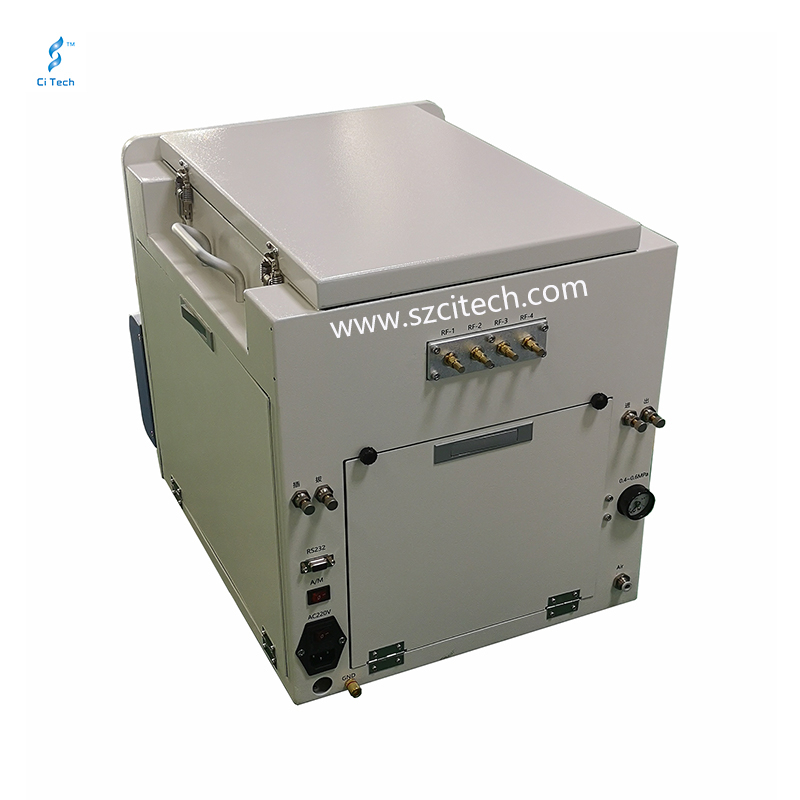

連接端口I/O Connectors	SMA4,RS2321, USB*2（可根據(jù)客戶要求定制）
