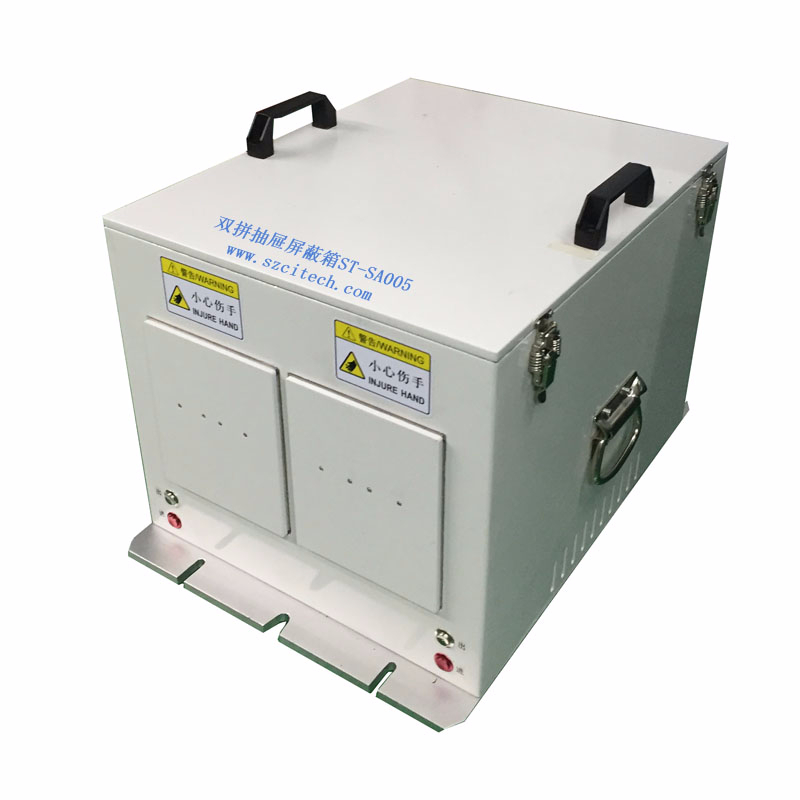

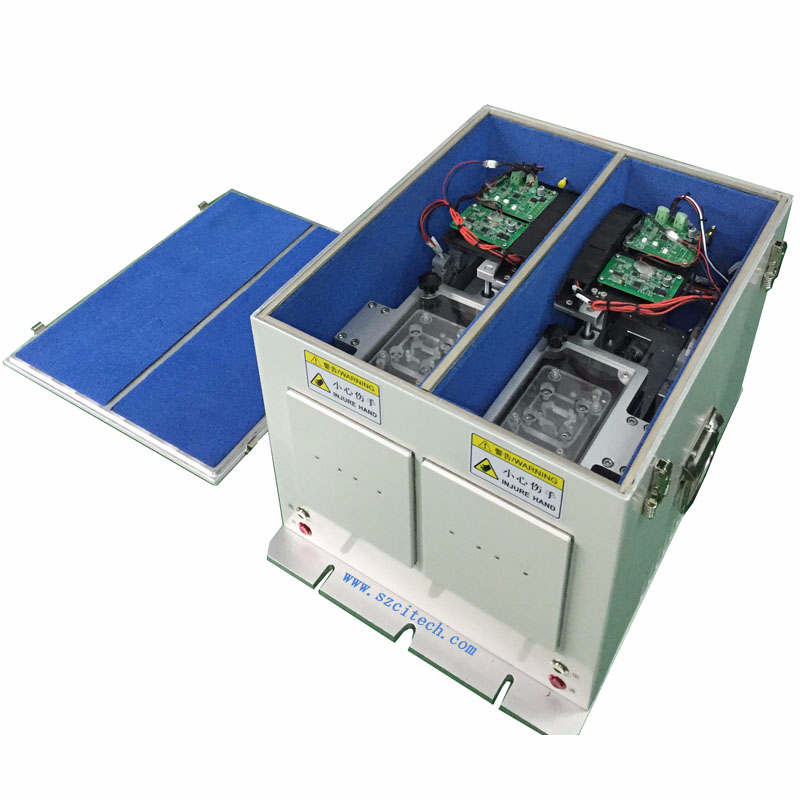

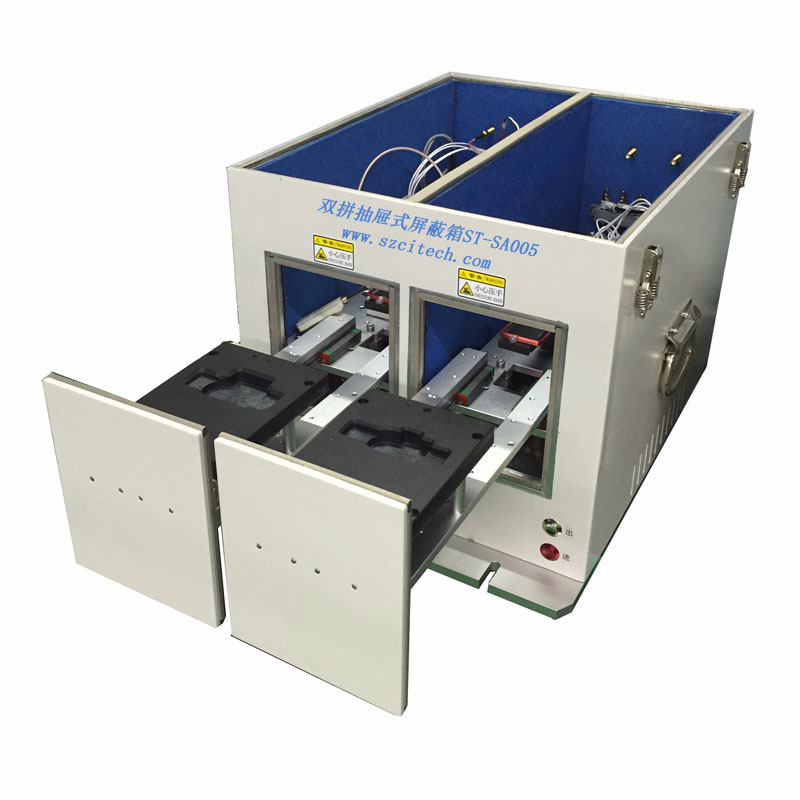

St-SA005 double drawer shielding box

ST-SA005 RF Shielding Box provides RF isolation and signal connections necessary for mobile testing. With the RF coupling accessory and filtered control ports, it makes an ideal solution for testing mobiles and small RF devices on the test benches of R&D, service QC and manufacturing

Comprehensive wireless communications testing solutions, in the service of high-end technology, such as DAB/DMB, GSM, GPS, LTE, WIFI, WI-MAX, CDMA, CDMA2000, WCDMA, TD-SCDMA, 3G/4G mobile, WLAN, Bluetooth, PDA,Reflex, WIFI phone, UWB, Zigbee, RFID, TD-SCDMA, etc.

order

Features

1. Reliable high RF shielding up to 12GHz

2. Pneumatic control

3. Easily customizable to meet various test needs

4. Shock absorbers on lid

Specification

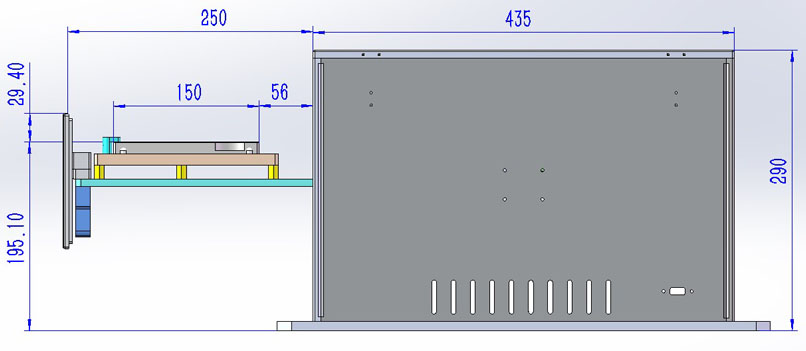

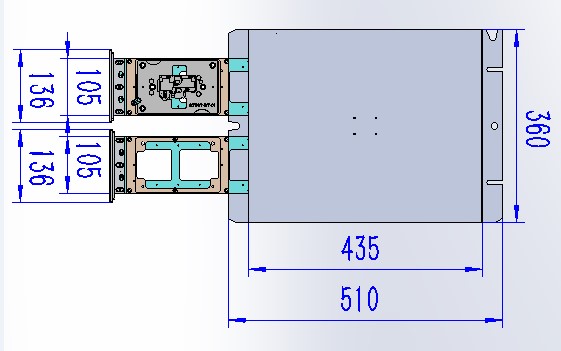

Outer Dimension	(L) 435x (W) 360x (H) 332mm
Shielding Isolation	800MHz~8.5GHz>70dB
Shielding Material	Microwave Absorber
Material	Aluminum
Surface Color	Grey white ( According to the customer request custom color)
I/O Connectors	1DB25，1USB，2DB9,2SMA（Can be customized according to needs）

We realize that the connectors, options and actual test procedures of one customer are entirely different from that of another. In fact over the past 10 years we have never had an identical connector and option configuration between customers! We made it easy with our precision machined I/O output panels to get standard delivery of your "custom configured" enclosure! It goes beyond connectors and options. If you need a special configuration, a different size or door configuration, talk to us! The entire line of STE enclosures has evolved from just that, the needs of people like you!
