氣動屏蔽箱

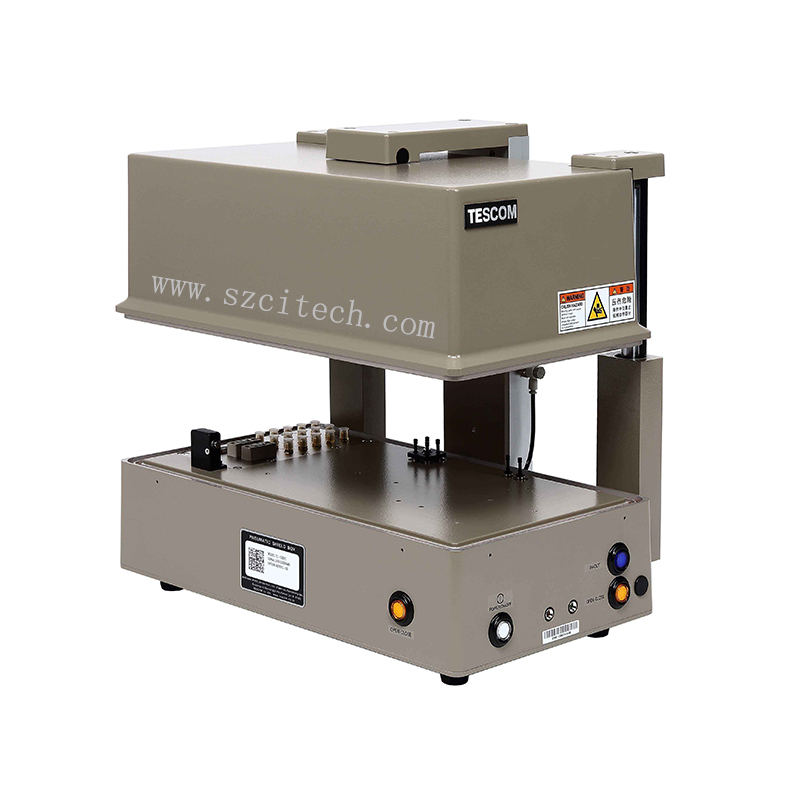

TC-5901C 氣動屏蔽箱

Sub-6GHz & UWB Pneumatic Shield Box
TESCOM的TC-5901CU氣動屏蔽箱適用于智能手機等小型設備的無線測試，門可利用氣動壓力自動開閉。 TC-5901CU在0.1GHz~12GHz的頻率范圍內提供屏蔽效果,不僅可用于LTE、WIFI、藍牙、Zigbee等傳統技術,還可用于5G、WIFI6E、UWB等前瞻性無線通信技術。 TC-5901CU可通過RS-232C和以太網實現遠程控制，并通過PC程序?qū)崿F(xiàn)其測量自動化系統。 在線訂購

Features


Reliable High RF shielding up to 6 GHz owing to simple up-down lid motion

Pneumatic control of lid open-close and optional automatic test fixture motions

EMI filters on all data ports and power line

Manual or remote operation(RS-232C)

Modular I/O design for possible customization of data and RF connection

Fixture control air outputs for custom test fixture

Red and Green LED for Pass/Fail indication

Dual pressure control and Lid Down Sensor for safety

CE  compliant  :  EN  292-1:1991,  EN  292-2:1991/A1:1995,  EN  983:1996,  EN  1050:1996, EN

60204-1:1997

Mechanical Specification  Line voltage  Data line capacity  Remote control Air connection  Main connector  Fixture control connector  Input air pressure

100 to 240 VAC, 50/60 Hz, 15 watt max.  100 VDC, 3 Amps max  RS-232C, 3 wire, DB9(p)

6 mm OD hose, one-touch push-on fitting  4 mm OD hose, one-touch push-on fitting  5 to 10 bar

inside：408(W) x 218(D) x 135(H) mm

outside：459(W) x 300(D) x 302(H) mm, lid closed. 449(H) mm, lid open  approx.19 kg

*Packing：610 (W) x 425(D) x 440(H) mm

 weight：approx. 21 kg

*The size or weight of a package may vary on how to pack a package.


Typical RF Shielding

The  shield  effectiveness  below  is  measured  when  the  blank  panel  is  mounted;  other  I/O  interface  panel results a different shielding effectiveness of the shield box.

100 to 2000 MHz>70db  2000 to 3000 MHz》60db  3000 to 6000 MHz  》50db

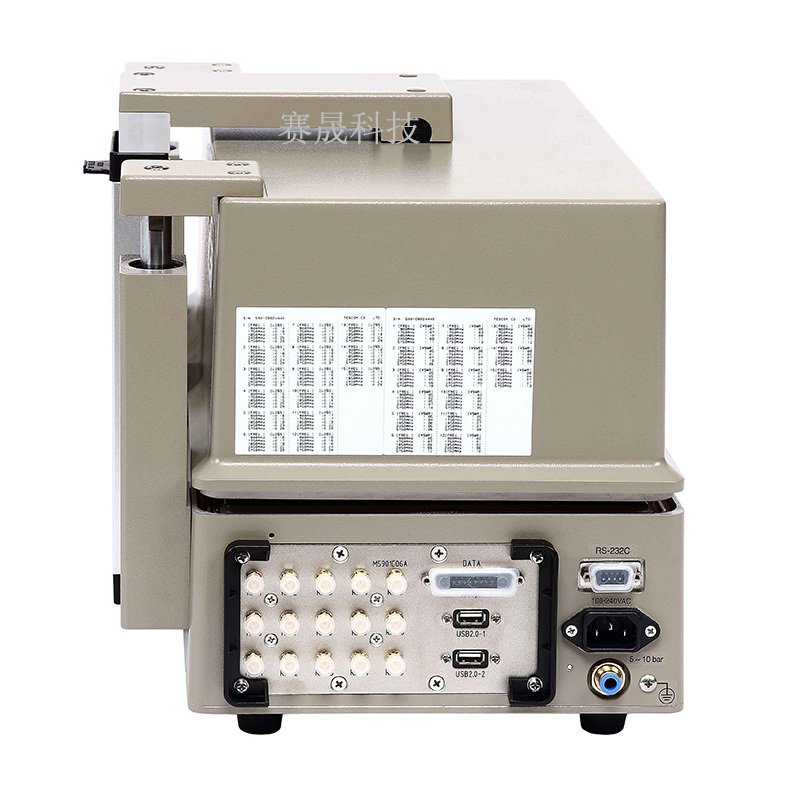

 I/O: SMA*15,DB25*1,USB2.0*2
