Manual shielding box

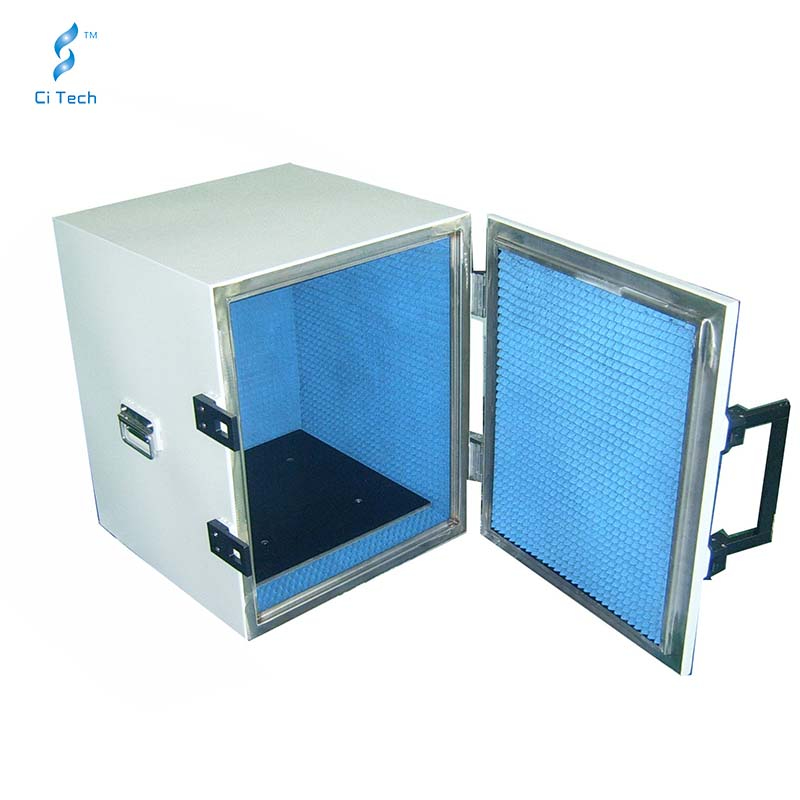

ST-S005 RF Shielding Box

Comprehensive wireless communications testing solutions , In the service of high-end technology, such as DAB/DMB、GSM、GPS、LTE、Wi-Fi、Wi-Max、 CDMA、CDMA2000、WCDMA、TD-SCDMA、3G/4G/5G mobile、WLAN、Bluetooth、PDA、Reflex、Wi-Fi Phone, UWB, Zigbee, RFID, TD-SCDMA, etc.

order

Application

ST-S005 RF Shielded Box provides RF isolation and signal connections necessary for mobile testing. With the RF coupling accessory and filtered control ports, it makes an ideal solution for testing RF devices on the test benches of R&D , service QC and manufacturing

Features

1、Reliable high RF shielding up to 12GHz

2、Manual operation

3、Easily customizable to meet various test needs

4、Shock absorbers on lid

Specification

Inner Dimension	520(D) x 420(W) x 420(H) mm
Outer Dimension	600(D) x 500(W) x 500(H) mm
Shielding Isolation	800Mhz~8.5GHz >70dB
Shielding Material	Microwave Absorber
Material	metal plate
Weight	approx.60kg
Storage temperature	-10～60°C
Operating temperature	0～50°C
Surface Color	Grey white ( According to the customer request custom color)
I/O Connectors	N-SMA*2
	RJ45*1
	DC*1
	USB*1
